The WiFi Router Guide by etree: Everything About Your Home Network

In our connected world, reliable internet access has become essential. The centerpiece of every modern home or office network is the WiFi router. It acts as the central hub connecting your devices to the internet and enabling wireless communication – whether for working from home, streaming movies, online gaming, or controlling your smart home.

However, choosing the right router can be overwhelming given the multitude of technologies, standards, and features. Wi-Fi 6, 5 GHz, Mesh, MU-MIMO, WPA3 – what do these terms mean, and what is truly relevant for your needs?

This comprehensive guide serves as your navigator through the world of WiFi routers. We will explain the basics, decipher the most important technical aspects, highlight purchasing criteria, and give you tips for setting up your wireless network. The goal is to provide you with the necessary knowledge to make an informed decision and find the ideal router.


1. What is a WiFi Router and How Does It Work? The Basics

A WiFi router is much more than just a small box with blinking lights. It is usually a combination device that unites several core functions:

  • Router: The actual router part manages the data traffic between your local network (home network) and the internet. It assigns local IP addresses to your devices, forwards data packets to the correct destinations, and acts as the first line of defense through an integrated firewall.

  • Access Point (AP): This component generates the wireless radio signal (WLAN/Wi-Fi) through which your smartphones, tablets, laptops, and other Wi-Fi-enabled devices can connect wirelessly to the network.

  • Network Switch: Most WiFi routers have several Ethernet ports (LAN ports) on the back. These function like an integrated switch and allow devices to be connected via network cable for a particularly stable and fast connection (e.g., for desktop PCs, game consoles, NAS systems).

Important: Router vs. Modem A common misconception concerns the difference between a router and a modem. The modem is the device that establishes the connection to your internet provider's network (e.g., via DSL, cable, fiber optic, or mobile network). The router, on the other hand, takes the internet signal provided by the modem and distributes it to the devices in your local network. There are combination devices that unite modem and router in one housing, but also setups with a separate modem and router, which often offers more flexibility in choosing a router.


2. The Language of Wi-Fi: Understanding Standards and Frequencies

The performance of your Wi-Fi network significantly depends on the standards and frequency bands used.

  • 2.1 The Wi-Fi Generations: The technology behind Wi-Fi is constantly evolving, reflected in various standards of the IEEE 802.11 norm. Each new standard brings improvements in speed, efficiency, range, and/or security. Here are the most relevant generations at a glance:

    • Wi-Fi 4 (802.11n, released 2009): An older but still common standard. Brought significant speed increases compared to predecessors (theoretically up to 600 Mbit/s) and introduced the use of the 5 GHz frequency band alongside 2.4 GHz.

    • Wi-Fi 5 (802.11ac, released 2013): The long-dominant standard. Primarily uses the 5 GHz band and enables significantly higher speeds (theoretically up to 6.9 Gbit/s). Introduced technologies like MU-MIMO (see below). Many devices in circulation support this standard.

    • Wi-Fi 6 (802.11ax, released 2019): The current mainstream standard. Operates in both the 2.4 GHz and 5 GHz bands. Offers not only higher theoretical peak speeds (up to 9.6 Gbit/s) but, above all, significantly higher efficiency and performance in environments with many devices. Key technologies like OFDMA and BSS Coloring reduce interference and latency. Also supports the more secure encryption standard WPA3.

    • Wi-Fi 6E (Extension of Wi-Fi 6): Additionally uses the 6 GHz frequency band. This band is (still) underutilized and offers very wide channels, leading to less interference and potentially even higher speeds. However, it requires Wi-Fi 6E capable routers and client devices.

    • Wi-Fi 7 (802.11be, standardized 2024): The latest generation. Uses all three bands (2.4, 5, and 6 GHz) and introduces technologies like MLO (Multi-Link Operation), where devices can use multiple bands simultaneously to maximize speed and reliability. Enables extremely high theoretical data rates (over 23 Gbit/s), uses even wider channels (320 MHz), and further improves latency. Devices with Wi-Fi 7 are increasingly available.

Important: To take advantage of the benefits of a newer standard, both the router and the connected client devices (laptop, smartphone, etc.) must support this standard. A Wi-Fi 6 router offers only limited advantages to a device that only supports Wi-Fi 5. However, the standards are backward compatible.

  • 2.2 The Frequency Bands: WiFi routers transmit on different frequency bands, which have different characteristics:

    • 2.4 GHz:
      • Advantages: Longer range, better penetration of walls and obstacles. Supported by practically all Wi-Fi devices.
      • Disadvantages: Lower maximum speed. The band is often heavily congested and prone to interference from other devices (microwaves, Bluetooth, baby monitors, neighboring Wi-Fi networks).

    • 5 GHz:
      • Advantages: Significantly higher speeds possible, much less congested and susceptible to interference than the 2.4 GHz band.
      • Disadvantages: Shorter range, signals are more attenuated by walls and ceilings. Not all older devices support this band.

    • 6 GHz (only with Wi-Fi 6E and Wi-Fi 7):

      • Advantages: Currently offers the greatest potential for very high speeds and minimal interference, as it is reserved exclusively for newer Wi-Fi devices and offers many wide channels.
      • Disadvantages: Shortest range and lowest penetration capability. Requires compatible client devices.

What Does Dual-Band and Tri-Band Router Mean?:

    • Dual-Band: Are routers that transmit simultaneously on 2.4 GHz and 5 GHz. This is the standard for most modern devices and allows devices to be distributed to the more suitable band.

    • Tri-Band: Are routers that use three radio modules. Either one 2.4 GHz and two 5 GHz, or one 2.4 GHz, one 5 GHz, and one 6 GHz. This offers even more capacity and flexibility for distributing devices and can further reduce interference, especially if one band is used exclusively as a "backhaul" for mesh systems.


3. Key Technologies of Modern Routers: What's Behind Them?

Besides standards and frequencies, other technologies improve the performance and efficiency of modern WiFi routers:

  • Beamforming: Instead of radiating the Wi-Fi signal evenly in all directions, beamforming allows the router to target the signal specifically towards connected devices. This improves signal strength, range, and stability of the connection for these devices.

  • MU-MIMO (Multi-User, Multiple Input, Multiple Output): Older routers could only communicate with one device at a time (SU-MIMO). MU-MIMO allows the router to send or receive data streams simultaneously to multiple compatible devices. This increases overall throughput and reduces latency in the network when many devices are active.

  • OFDMA (Orthogonal Frequency Division Multiple Access): One of the most important innovations of Wi-Fi 6 and Wi-Fi 7. OFDMA allows a single Wi-Fi channel to be divided into smaller subchannels and send/receive them simultaneously to/from different devices. This is significantly more efficient than previous methods, especially with many small data packets (such as those common from smart home devices or in online games) and in environments with many users.

  • Channels and Channel Width: Each frequency band is divided into channels. To achieve higher speeds, routers can bundle channels. Wider channels offer more data throughput but are more susceptible to interference and reduce the number of available, non-overlapping channels.

  • Mesh Capability: Many modern routers can function as part of a mesh Wi-Fi system or build one. In this setup, multiple devices like routers and repeaters work together to create a single, seamless Wi-Fi network with large coverage. Ideal for larger apartments or houses with reception problems.


4. Important Hardware Features: What to Look For When Buying

Besides the radio technologies, the physical features of the router are also relevant:

  • 4.1 Speed & WiFi Standard: Choose a router whose WiFi standard and speed class match your internet connection and your most important client devices. A gigabit internet connection benefits from at least Wi-Fi 5, preferably Wi-Fi 6 or higher. If you already own Wi-Fi 6/6E/7 capable devices, a corresponding router makes sense to utilize their potential.

  • 4.2 Ports:

    • WAN Port: The connection for the modem or internet connection. Should support at least Gigabit Ethernet (1000 Mbit/s); for very fast internet connections (over 1 Gbit/s), a multi-gigabit WAN port (2.5G, 5G, or 10G) makes sense.

    • LAN Ports: Connections for wired devices. Gigabit Ethernet (1 Gbit/s) is standard. 4 ports are common. For demanding home networks (e.g., with NAS), multi-gigabit ports (2.5G or more) can also be advantageous here.

    • USB Ports: Allow the connection of USB sticks or external hard drives, which can then be shared on the network. Connecting a USB printer for network sharing is often possible too. Generally: USB 3.0 is significantly faster than USB 2.0.

  • 4.3 Antennas: Routers have internal or external antennas. External antennas can often be adjusted to optimize reception. The number of antennas often correlates with performance (MIMO), but is not a quality feature by itself.

  • 4.4 Processor & RAM: Like in a computer, the CPU and RAM in the router determine its performance. A fast processor and sufficient RAM are important so that the router can manage many devices simultaneously, process high data rates, and run additional functions (VPN, QoS, etc.) smoothly. For routers designed for high speeds or with many features, a powerful hardware base is crucial.

  • 4.5 Integrated Modem: Some routers (especially DSL routers like many AVM FRITZ!Box models) already have a built-in modem. This saves one device but limits flexibility if you later change the connection technology (e.g., switching from DSL to fiber optic). Routers without an integrated modem require a separate modem from your provider or your own.


5. More Than Just Internet: Additional Router Functions

Modern routers are often small command centers with many useful additional features:

  • 5.1 Security:

    • Encryption: WPA3 is the currently most secure standard and should be preferred over WPA2 if your devices support it. WEP is outdated and insecure.

    • Firewall: Protects your network from attacks from the internet.

    • Guest Network: Allows guests to use your internet without gaining access to your actual home network and your devices. Highly recommended!

    • Firmware Updates: Regular updates from the manufacturer are important to close security vulnerabilities and improve performance. Look for manufacturers who support their devices for a long time. Automatic updates are convenient.

    • Strong Admin Password: Absolutely change the default password for accessing the router settings!

  • 5.2 Convenience Features:

    • QoS (Quality of Service): Allows prioritization of specific devices or applications (e.g., video conferences, online gaming) to ensure they receive enough bandwidth even during high network load.

    • Parental Controls/Child Safety: Allows blocking certain websites or limiting online times for selected devices.

    • VPN (Virtual Private Network): Some routers can act as a VPN server (to securely access your home network while on the go) or as a VPN client (to route all network traffic through a VPN service).

  • 5.3 Telephony: Some routers have an integrated DECT base station for cordless phones and ports for analog phones or ISDN devices. They can replace a separate telephone system.

  • 5.4 USB Applications: As mentioned, storage connected via USB can serve as network storage (NAS-Light) for shared files, backups, or as a media server. Sharing a USB printer on the network is often possible too.

  • 5.5 Smart Home Integration: Some routers offer functions for controlling smart home devices (e.g., via DECT ULE or in the future Matter/Thread).


6. Finding the Right Router: Purchase Decision Based on Needs

The choice of router should be based on your specific requirements:

  • 6.1 Analysis of Your Own Needs:

    • Internet Connection: How fast is your subscribed line (Mbit/s)? The router should be able to support this speed (WAN port, WiFi standard).

    • Household Size/Living Area: How large is the area that needs to be covered with Wi-Fi? Are there thick walls or multiple floors? (Influences choice between router vs. mesh/repeater).

    • Number of Devices: How many devices (smartphones, laptops, tablets, smart TVs, consoles, smart home gadgets, etc.) will use the Wi-Fi simultaneously? The more devices, the more important standards like Wi-Fi 6/7 and MU-MIMO/OFDMA become.

    • Main Applications: What is the internet primarily used for? Simple Browse has lower demands than 4K streaming, online gaming, or large downloads/uploads in the home office.

  • 6.2 Recommendations for Different Scenarios:

    • Simple Household (1-2 people, moderate usage): A solid Wi-Fi 5 or Wi-Fi 6 dual-band router with Gigabit ports is often sufficient. Focus on ease of use and stability.

    • Family / Shared Flat (many devices, streaming, possibly home office): A more powerful Wi-Fi 6 dual-band or tri-band router is recommended. MU-MIMO and OFDMA help manage many devices. A mesh system might make sense (see below).

    • Gamer / Power User: Wi-Fi 6 or Wi-Fi 7 router with high performance (fast CPU/RAM), low latency, QoS features for prioritizing game traffic, possibly multi-gigabit LAN ports.

    • Large Living Area / Reception Problems: Instead of a single, very expensive router, a Mesh Wi-Fi system is often the better choice for comprehensive, seamless coverage.

  • 6.3 Future-Proofing: If you plan to use the router for several years and already have newer client devices or plan to acquire them, investing in a Wi-Fi 6E or Wi-Fi 7 router can make sense to be prepared for future requirements. For most users, however, a good Wi-Fi 6 router is currently a very solid compromise.


7. Setup and Optimization: Best Wi-Fi at Home

Even the best router is of little use if it is incorrectly placed or configured.

  • 7.1 The Optimal Location: Place the router as centrally as possible in the apartment/house, elevated (e.g., on a shelf, not on the floor), and free from obstacles. Avoid proximity to thick walls, metal objects, aquariums, or sources of interference like microwaves or Bluetooth speakers.

  • 7.2 Basic Setup: Follow the instructions of the manufacturer's setup wizard. Most importantly: Immediately change the default password for accessing the router's user interface!

  • 7.3 Network Name (SSID) and Password: Choose a unique network name and a very strong, long password with a mix of upper/lower case letters, numbers, and special characters for your Wi-Fi. Use WPA3 encryption if available and supported by your devices, otherwise WPA2.

  • 7.4 Improving Wi-Fi Range: If the signal isn't sufficient everywhere:

    • Wi-Fi Repeater: Amplify the existing signal. Simple and inexpensive, but can halve the speed and often create a separate network.

    • Powerline Adapters: Use the power grid for data transmission. Good for bridging longer distances or thick walls. Wi-Fi Powerline adapters create a new Wi-Fi signal at the destination. Speed depends on the quality of the power lines.

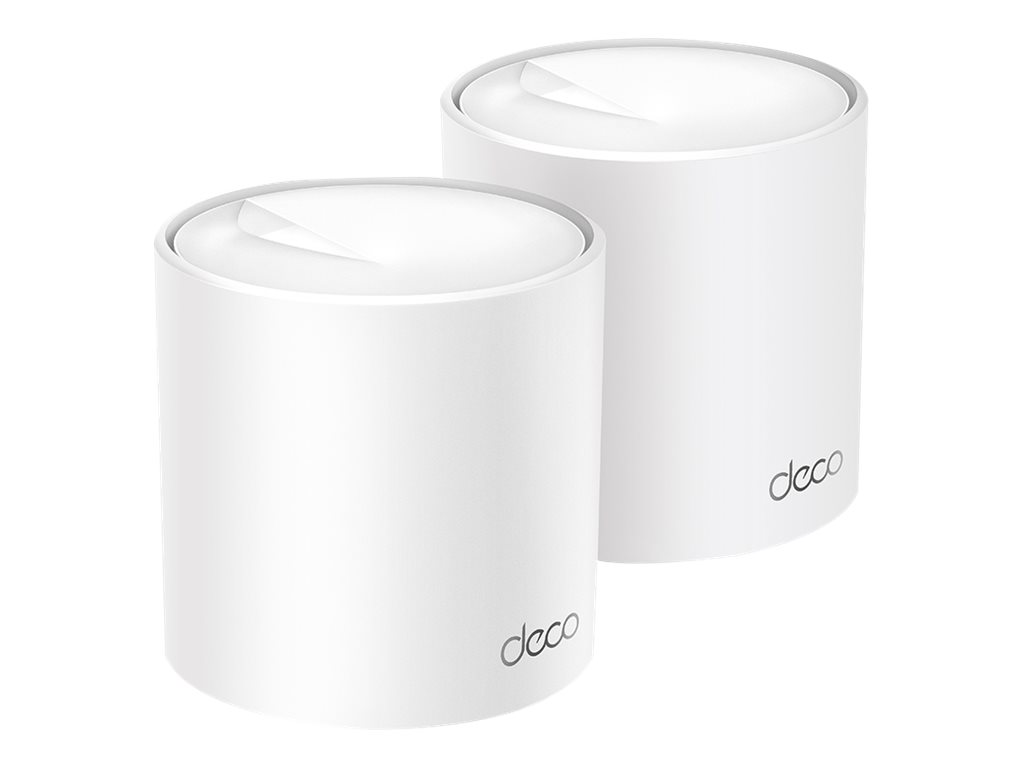

    • Mesh Wi-Fi Systems: Consist of a base station (often the router itself or a special mesh router) and multiple nodes that work together intelligently to create a single, seamless Wi-Fi network (same name, same password) with optimal coverage. Your devices on the network automatically switch to the strongest node (roaming). Usually the most elegant and powerful solution for large areas.

  • 7.5 Channel Selection: Routers usually select a radio channel automatically. In environments with many neighboring Wi-Fi networks, it can be useful to manually select a less congested channel (especially in the 2.4 GHz band). Analysis tools (apps) can help with this. However, modern routers often manage this quite well automatically.


8. Conclusion: Your Path to an Optimal Home Network

Choosing the right WiFi router is a crucial step towards a fast, stable, and secure digital experience at home or in the office. As this guide has shown, many factors play a role – from the supported Wi-Fi standards and frequency bands, hardware features, and additional functions to correct placement and configuration.

The most important starting point is always the analysis of your own needs and requirements. Understand what internet speed you have, how many devices you use, and which applications have priority for you. Invest in a router with current standards (at least Wi-Fi 6 is a good choice today) and pay attention to essential security features like WPA3 and regular firmware updates.

Don't be solely dazzled by maximum theoretical speed ratings; also consider the efficiency in real-world environments with many devices (this is where Wi-Fi 6 and 7 score) and the coverage in your premises. For larger areas or problems with range, a mesh system is often a better investment than a single, oversized router.

With the knowledge imparted here, you are now better equipped to understand technical specifications, compare offers, and make an informed decision. This way, you will find the WiFi router that reliably serves you for years to come as the centerpiece of your home network.
