The Docking Station Guide by etree: Maximum Connectivity for Your Laptop

Modern laptops impress with their slim design and high mobility. However, this elegance often comes at a price: a reduced number of ports. Anyone wanting to use their laptop not just on the go, but also as a fully-fledged workstation at their home or office desk, quickly reaches limits. Monitors, keyboard, mouse, external hard drives, network cables, printers – all need to be connected. This is where the docking station comes in: it is the central interface that transforms your laptop into a powerful desktop environment with just a single connection.

But what exactly does a docking station do? How does it differ from a simple USB hub? What connection types are there, and what do you need to consider when buying to find the perfect solution for your needs?

This guide leads you through the world of docking stations. We explain the crucial advantages, clarify the different connection standards, and provide tips so you can choose the optimal docking station for your workspace.

1. What is a Docking Station and Why is it Useful?

A docking station is essentially an external hardware unit designed to significantly expand a laptop's connectivity options and centralize the connection to peripheral devices.

• 1.1 The Core Benefits in Detail:


• More Ports (Port Variety): Modern laptops, especially thin and light models, often have only a few ports, usually USB-C or Thunderbolt. Depending on the model, a docking station offers a wealth of additional ports such as USB-A, HDMI, DisplayPort, Ethernet (LAN), audio jacks, memory card readers, and more.


• One-Cable Convenience: All your peripheral devices (monitors, keyboard, mouse, hard drive, printer, network, etc.) are permanently connected to the docking station. You then connect your laptop to the docking station with just a single cable (usually USB-C or Thunderbolt) to be instantly connected to all devices – and often charged simultaneously. This saves the tedious plugging and unplugging of many individual cables when you take the laptop with you or bring it back to the workstation.


• Desktop Feeling on a Laptop: With a docking station, you can easily connect multiple external monitors, an ergonomic keyboard, and mouse, transforming your laptop into a fully-fledged and comfortable desktop workstation.


• Tidy Desk: Cable clutter is reduced as most cables converge centrally at the (often discreetly placeable) docking station. Some docks can even be mounted behind a monitor using a VESA mount.


• Laptop Charging (Power Delivery): Many modern docking stations can supply power to the connected laptop via the same USB-C or Thunderbolt cable. The separate laptop power adapter can then stay in the bag or be used elsewhere.


• Workstation Sharing: A universal docking station allows different (compatible) laptops from various users to be connected sequentially to the same workstation with monitors and peripherals – ideal for flexible office environments or home offices.



2. Docking Station vs. USB Hub: What's the Difference?

Although both devices expand the number of ports, there are significant differences:

• USB Hub: Primarily expands the number of USB ports (mostly USB-A, sometimes USB-C). They are generally smaller, cheaper, and often powered directly by the laptop's USB port, which can limit the performance of connected devices. Additionally, a USB hub typically cannot charge the laptop.


• Docking Station: Offers a much broader range of different ports, often including multiple video outputs (HDMI, DisplayPort), Ethernet (LAN), audio, and numerous USB ports. It uses more powerful connection technologies to handle the high amount of data for all these interfaces. Crucially, many docking stations can charge the laptop via Power Delivery. Due to their higher power requirements, docking stations almost always need their own external power supply.

Rule of Thumb: If you only need a few extra USB ports, a hub is sufficient. As soon as you want to connect external monitors, charge your laptop, and connect a variety of peripherals via a single cable, a docking station is the right choice.

3. Connection to the Laptop: From Proprietary to Universal

The way a docking station connects to the laptop has changed significantly over time:

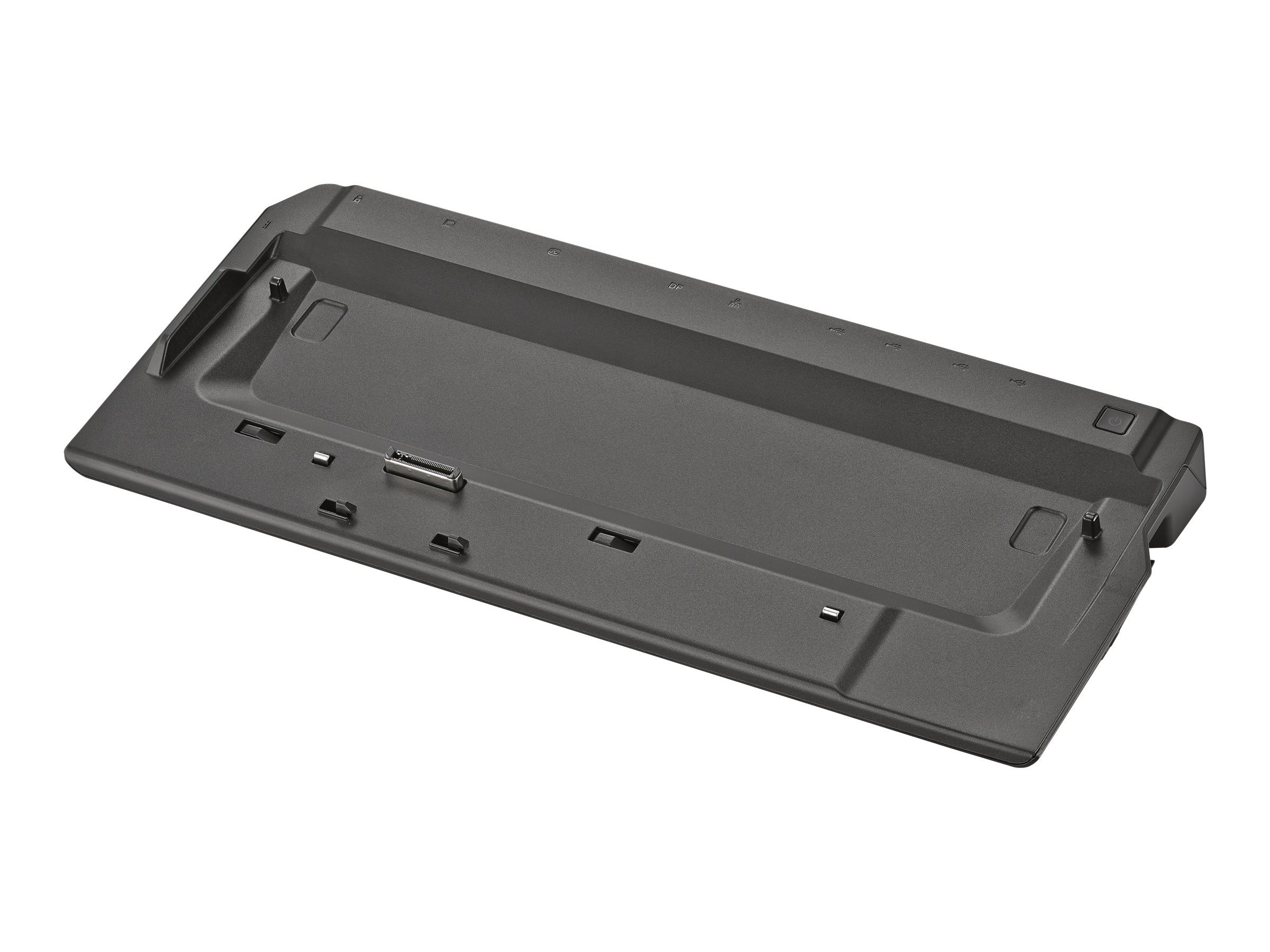

• 3.1 Older Proprietary Connectors: Previously, docking stations were often mechanical constructions into which the laptop was physically clicked. They used special, manufacturer-specific connectors on the bottom or side of the device (think of classic business notebook series like ThinkPads or Latitudes). Fortunately, this type is largely obsolete.


• Advantage: Often seamless integration and guaranteed compatibility with the intended models, including power supply.
• Disadvantage: Extremely limited compatibility (only for specific models/series), no universal use possible, bulkier design.


• 3.2 Modern Universal Connections (via Cable): Today's docking stations are almost exclusively connected via a single cable based on universal standards.


• USB-C: The most common connection for modern universal docks. The small, reversible USB-C connector is versatile, but its capabilities vary greatly! For a USB-C docking station to drive monitors and charge the laptop, the USB-C port on the laptop must support DisplayPort Alternate Mode (DP Alt Mode) and Power Delivery (PD). Caution: Not every USB-C port can do this! Check your laptop's specifications carefully. The supported data rate also depends on the USB standard (e.g., USB 3.1 Gen 1/5Gbps, Gen 2/10Gbps, USB 3.2 Gen 2x2/20Gbps, USB4/40Gbps).


• Thunderbolt (3, 4, or 5): Also uses the physical USB-C connector but offers a guaranteed minimum bandwidth of 40 Gbps (Thunderbolt 3/4) or more (Thunderbolt 5: up to 80/120 Gbps). This enables the connection of multiple high-resolution monitors (e.g., 2x 4K @ 60Hz or more), the operation of external graphics cards, and very fast SSDs. Thunderbolt standardly includes DisplayPort functionality and Power Delivery. A Thunderbolt dock requires a Thunderbolt port on the laptop to reach its full potential. While it often works on a regular USB-C port, it does so only with reduced USB-C functionality.


• USB-A: Rather unsuitable for fully-fledged docking stations as USB-A does not natively support video transmission (DisplayPort Alt Mode) or power supply (Power Delivery). Docks that connect monitors via USB-A usually use DisplayLink technology. This compresses the video signal and sends it as normal USB data. Advantage: Also works on laptops without DP Alt Mode. Disadvantage: Requires driver installation on the laptop, can burden the CPU, and sometimes leads to latency or compatibility issues, especially with videos or games. More of a workaround or suitable for simple office applications.

The most important rule: ALWAYS check your laptop's specifications before buying a docking station, especially the capabilities of the USB-C or Thunderbolt port!

4. Which Ports and Features Do Docks Offer?

Docking stations come with various combinations of ports. Consider what you need:

• 4.1 USB Ports:


• Type-A: For older peripherals (mouse, keyboard, USB sticks, printers). Look for fast standards (USB 3.0 / 3.1 / 3.2 - often marked blue or red).


• Type-C: For modern devices (external SSDs, smartphones). Can be data-only ports or sometimes offer Power Delivery for charging devices.


• Number: Consider how many USB devices you want to connect simultaneously.


• 4.2 Video Outputs:


• HDMI & DisplayPort (DP): The most common standards for external monitors. Pay attention to the version (e.g., HDMI 2.0/2.1, DP 1.2/1.4/2.0), as this determines the maximum supported resolution and refresh rate.


• Older Connectors: VGA or DVI are rare but present on some docks for compatibility with old monitors.


• Multi-Monitor Support: Check exactly how many monitors the docking station supports and at what maximum resolution (Full HD, QHD, 4K, 8K) and refresh rate (30Hz, 60Hz, 120Hz+). This capability strongly depends on the connection type and bandwidth. Also, consider the capabilities of your laptop's graphics card.


• 4.3 Network Port (Ethernet): An RJ45 port for a stable, wired network connection. Gigabit Ethernet (1 Gbit/s) is standard. For faster networks, there are docks with Multi-Gigabit Ethernet (2.5G, 5G).


• 4.4 Audio Ports: Usually a 3.5mm jack for headphones or headsets (often a combo jack).


• 4.5 Memory Card Reader: Slots for SD and/or microSD cards. Very convenient for quick data transfer from cameras.


• 4.6 Power Delivery (PD): Indicates how many watts (W) the docking station can charge the laptop with (e.g., 60W, 85W, 96W, 100W, sometimes more). This value must at least match your laptop's power consumption to ensure it charges even under load. Check your laptop's requirements, often specified on the original power adapter.


• 4.7 Other Features:


• Security Lock Slot: (Kensington Lock) For physically securing the docking station.


• Power Button: To turn the dock on/off and sometimes the connected laptop (requires compatibility).


• Internal M.2 Slots: Rare, but some docks allow installing an NVMe SSD as fast external storage.


• VESA Mounting Option: Possibility to attach the docking station, e.g., to the back of a monitor.



5. Choosing the Right Docking Station: What You Need to Look For

Consider the following points during selection to avoid purchasing mistakes:

• 5.1 Compatibility with Your Laptop: The absolute key!


• What connection port does your laptop have (USB-C / Thunderbolt)?


• Does the laptop port support DisplayPort Alternate Mode for video output?


• Does the laptop port support Power Delivery for charging? At what wattage?


• Check the specifications in the manual or on the laptop manufacturer's website!


• 5.2 Required Ports: Make a list of all devices you want to connect (monitors, keyboard, mouse, printer, hard drives, headset, SD card, network cable, etc.) and choose a dock with the appropriate ports in sufficient quantity.


• 5.3 Monitor Requirements: How many monitors do you want to connect? At what resolution and refresh rate should they run? Ensure the docking station and your laptop support this. Thunderbolt offers the greatest flexibility here.


• 5.4 Power Delivery Need: Compare the dock's PD output (in Watts) with your laptop's requirement. Choose a dock that provides at least enough power.


• 5.5 Connection Type (USB-C vs. Thunderbolt): If your laptop supports Thunderbolt and you need high performance (multiple 4K monitors, fast external SSDs), a Thunderbolt dock is the best choice. For most standard setups (e.g., 1-2 monitors up to QHD/4K@60Hz, standard peripherals), a good USB-C docking station is often sufficient, provided your laptop supports DP Alt Mode and PD.


• 5.6 Operating System Compatibility & Drivers: Check if the docking station is compatible with your OS (Windows, macOS, ChromeOS, Linux). Docks using DisplayLink require driver installation. Firmware updates or specific manufacturer drivers might also be necessary for other docks.


• 5.7 Budget and Brand: Docking station prices vary widely. Cheaper models often offer fewer ports, lower performance, or only use DisplayLink. High-quality Thunderbolt docks from established brands are more expensive but usually offer more performance, reliability, and better compatibility.



6. Setup and Use:

• 6.1 Connection: First, connect all peripherals and the power supply to the docking station. Then, connect the docking station to the corresponding port on your laptop using the provided cable (USB-C or Thunderbolt).


• 6.2 Driver Installation: For most functions (USB, Ethernet, Audio, Video via DP Alt Mode/Thunderbolt), separate drivers are often not necessary under Windows and macOS. Exception: If the docking station uses DisplayLink for video output, you must download and install the DisplayLink drivers from the dock manufacturer's website or displaylink.com.


• 6.3 Firmware Updates: Occasionally check the docking station manufacturer's website for firmware updates for your model. These can improve compatibility, performance, or stability.


• 6.4 Laptop in Closed State (Clamshell Mode): If you want to close the laptop while connected to the docking station and only use the external monitors, you may need to adjust your operating system's power settings to prevent the laptop from going into sleep mode. Ensure the laptop receives adequate cooling in this state.



7. Conclusion: The Key to More Flexibility and Productivity

A docking station is far more than just a simple port expander. It is the elegant solution to compensate for the limited port variety of modern, slim laptops and combine the best of both worlds: the mobility of the laptop on the go and the comfort of a fully equipped desktop workspace in the office or at home. The convenience of connecting all peripherals and often power via a single cable increases efficiency and ensures a tidy desk.

However, choosing the right docking station requires careful checking of compatibility, especially the capabilities of your laptop's USB-C or Thunderbolt port. Consider your individual requirements for ports, monitor support, and charging power. While a good USB-C docking station is sufficient for many users, Thunderbolt docks offer the highest performance and flexibility for demanding setups.

Invest in a high-quality docking station that fits your laptop and needs – it's an investment in a more comfortable, flexible, and productive workday.
